Configuration software for PMD02 and PMF01

  • Overview
  • The software packages serve to save all instrument parameters (system data and test program data) on a computer (PC) above the communication interface SERIAL 1 of the instruments or to transfer the data back in the instruments. All data are removed Device-oriented at the instrument series number. Old backups are removed by a recent backup automatically in a History directory. These data can be fetched back any time again and be activated.

    If the data protection with this software is strictly carried out, it can come after human judgement to no more data loss.

    The parameter software is for the different device series in different executions:

    • PMD02-DATA for the leak testing instruments of the series PMD02
    • PMF01-DATA for the flow testing instruments of the series PMF01

    For the first tests are free Demo version (look at downloads) with some functional limitations are ready for download. Enter to use the demo version as Serial no. "99999999".

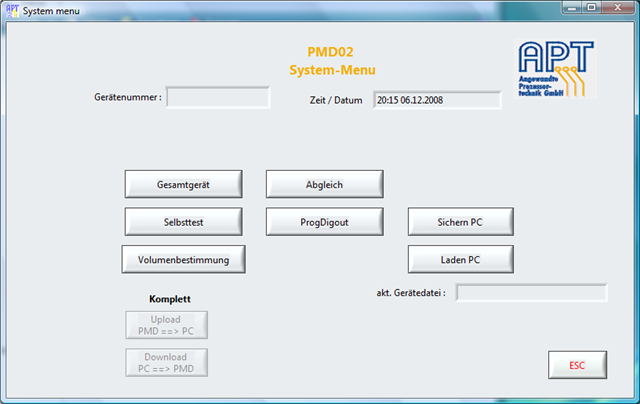

  • PMD02-DATA
  • General data
    Computer requirement

    Windows PC:
    from V1.2.0: Windows XP, Windows Vista, Windows 7, Windows 8, Windows 10, Windows 11

    Pentium > 800 MHz Taktfrequenz, min. 256 MB RAM, min. 1x serial data interface RS232,
    Tastatur, Maus

    By using a Ethernet Com box directly via IP address connectable

    Monitor min. 600 x 480 Pixel resolution
    Device requirement

    Software: Version > V3.2D, Option "Serial Datainterface SDI"

    Hardware: MASCON L700407C or newer

    Functions
    • Up-and download of the test program parameters
    • Up-and download of the system parameters
    • Editing, loading and saving of all parameters
    • Printing the data on system printer
    • Storage of all data in Excel compatible dBase files
    • Remote control by means of SDI telegrams for test purposes with result protocols

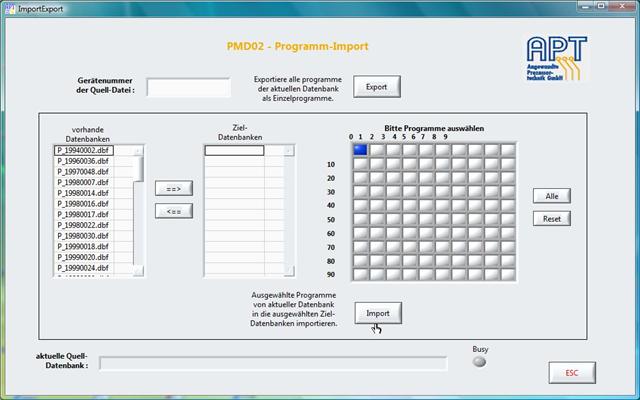

    • Automatic alignment of all test programs between PC and PMD02
    System languages German and English (switchable), others on request
    Communication protocols
    • Siemens 3964(R)
    • ASCII
    • Ethernet (TCP/IP)
    Other All variations of the series PMD02 are supported



    DOWNLOADS

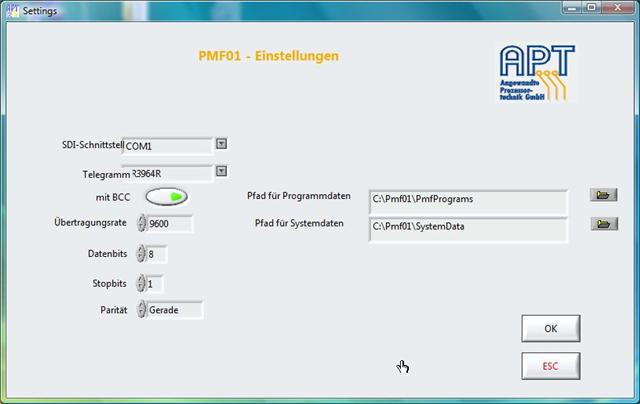

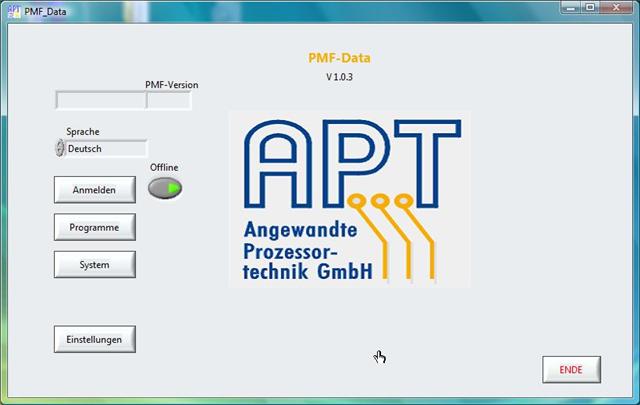

  • PMF01-DATA
  • General data
    Computer requirement

    Windows PC:
    from V1.2.0: Windows XP, Windows Vista, Windows 7, Windows 8, Windows 10, Windows 11

    Pentium > 800 MHz Taktfrequenz, min. 256 MB RAM, min. 1x serial data interface RS232,
    Tastatur, Maus

    By using a Ethernet Com box directly via IP address connectable

    Monitor min. 600 x 480 Pixel resolution
    Device requirement

    Software: Version > V1.4x, Option "Serial Datainterface SDI"

    Hardware: MASCON L700407C or newer

    Functions
    • Up-and download of the test program parameters
    • Up-and download of the system parameters
    • Editing, loading and saving of all parameters
    • Printing the data on system printer
    • Storage of all data in Excel compatible dBase files
    System languages German and English (switchable), others on request
    Communication protocols
    • Siemens 3964(R)
    • ASCII
    • Ethernet (TCP/IP)
    Other All variations of the series PMF01 are supported



    DOWNLOADS
